Name: Commercial Salt Vibrating Fluid Bed Drying Machine Small Sea Salt Vibration Fluidized Bed Dryer Edib
Brand: SHANGHAI GOINGWIND MACHINERY CO.,LTD.
SKU: 01088
Availability: InStock
Rating: 5 (1 reviews)

Home

Concentrating & Drying Equipment

Fluid bed drying machines

Description

Commercial Salt Vibrating Fluid Bed Drying Machine Small Sea Salt Vibration Fluidized Bed Dryer Edible Salt Drier for Sale

Introduction:

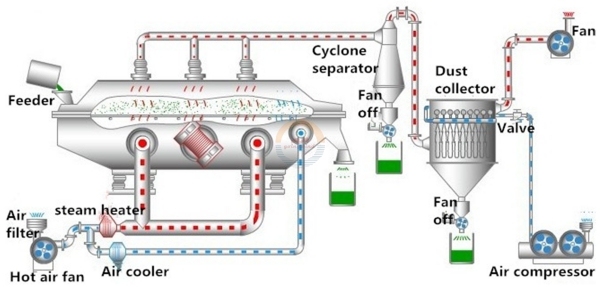

Raw material is fed into machine from input port, at the same time, vibrating motor on the two sides of fluid bed will cause vibration with regular frequency, make the material move forward continuously in horizontal direction. The heated air pass through fluid bed, and exchange heat with material, moisture will exhaust with air through cyclone duster separator, at last the dried material will be discharged by output port.

Application Scope:

Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on;

Foodstuff and construction material industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on;

It can also used for raw materials to add up damp or cooling and so on.

Main Features:

1. With high fluidized level, material heated uniformly, heat exchange adequately, save 30% energy compared with normal dryer. No dead angle and phenomenon of broken out.

2. Drive by vibrating motor, stable in operation, convenient in maintenance, with low noise, cause a long working life.

3. Good in adjustable and wide in suitability. The stay time for material, thickness of material layer, drying temperature all can adjust.

4. With fully sealing structure, prevent the cross pollution between raw material and air, ensure a clean operation environment.

Model List:

MODEL	BED SIZE	EVAPORATION CAPACITY	POWER	VOLTAGE	DIMENSIONS
GWF2.5*0.25	2500*250mm	10-25kg/h	0.5kw*2	220/380V	30008501830mm
GWF3*0.3	3000*300mm	20-35kg/h	0.5kw*2	220/380V	35008901830mm
GWF4.5*0.3	4500*300mm	35-50kg/h	0.75kw*2	220/380V	500011001830mm
GWF4.5*0.6	4500*600mm	70-90kg/h	1.1kw*2	220/380V	500013001950mm
GWF6*0.6	6000*600mm	100-130kg/h	1.1kw*2	220/380V	650017001700mm
GWF6*0.9	6000*900mm	140-170kg/h	2.2kw*2	220/380V	651020001850mm
GWF7.5*0.9	7500*900mm	160-210kg/h	3kw*2	220/380V	800021001850mm
GWF7.5*1.2	7500*1200mm	200-260kg/h	3kw*2	220/380V	800024502050mm
GWF9.5*1.2	9500*1200mm	250-350kg/h	4kw*2	220/380V	1000024502050mm

About Us

SHANGHAI GOINGWIND MACHINERY CO.,LTD. was founded in Shanghai, it has expanded in Jiangsu, Zhejiang and other places, with factory area of over 15000M2, working staff of more than 150 persons. We have more than 20 years of experience in the R&D and production of food equipment, our products are sold to more than 50 countries, such as United States, Hungary, South Korea, Pakistan, United Arab Emirates, Indonesia, Philippines, Australia, Myanmar, Thailand, Peru, Venezuela, Mongolia, Saudi Arabia, Malaysia, Canada, Trinidad and Tobago, Egypt, Tanzania, Georgia, Kenya, Congo, Angola, Nigeria, Chile, etc.

Our company specializes in the development and manufacturing of Dairy & Beverage Equipment, Fruit & Vegetable Processing Equipment, Essential Oils Distiller, and related Filling & Packaging Equipment. Products are widely used in food and other industries, including dairy products (milk, yogurt, cheese, ice cream, condensed milk, milk powder, etc.), fruit juices, plant-based milks, tomato paste, jams, dehydrated fruits & vegetables, powder & flour products, essential oils, etc.

We are is a professional food machinery manufacturer, we are committed to providing customized turnkey projects for the food industry to our customers. We warmly welcome your visit and sincerely look forward to cooperating with you!

Company Environment

Our Services

Pre-sale service:

1. Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.

2. Our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.

Sale service:

1. Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.

2. Our company has excellent after-sales service, strict training to ensure that the user needs.

3. During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.

After-sales service:

1. Our company strictly abide by the after-sales service commitment, boot debugging within 12 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)

2. Our company promises to provide life-long maintenance for equipment.

Our Certificates
