Name: Industrial Milk Vacuum Evaporator Concentrator Evaporated Cow Milk Concentrate Evaporation Concentra
Brand: SHANGHAI GOINGWIND MACHINERY CO.,LTD.
SKU: 01107
Availability: InStock
Rating: 5 (1 reviews)

Home

Concentrating & Drying Equipment

Vacuum evaporator

Description

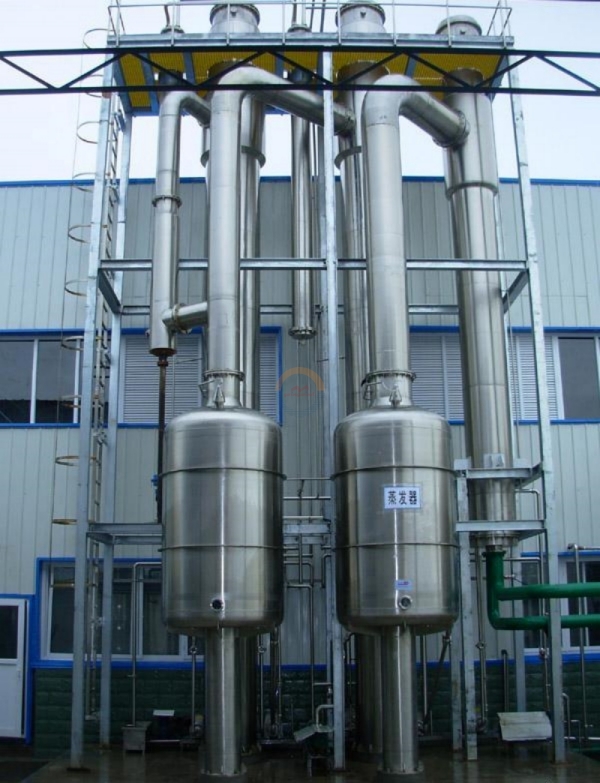

Industrial Milk Vacuum Evaporator Concentrator Evaporated Cow Milk Concentrate Evaporation Concentration Machine Equipment

Introduction:

Multi effect falling film evaporator adopting the falling film evaporation, high use factor of steam, low energy consumption, use waste heat as heat source, reducing steam consumption, more effects, more energy-saving, more economic. It mainly adapts in continuous evaporation and concentration under low temperature, can process milk, juice, jam, glucose, starch, xylose, pharmaceutical, biological engineering, environmental protection, waste liquid recycling etc, especially suitable for processing the material with character of heat sensitive, viscosity and foamability. This equipment consists of first effect heater, second effect heater, liquid-steam separators, pre-heater, condenser, hot pressure pump, vacuum pump, material pump, balance tank, control cabinet, working platform, pipes, fittings and valves.

Main Features:

1. High use factor of steam, low energy consumption, use waste heat as heat source, reducing steam consumption.

2. Equipment can continuous feeding and discharging, full closed process, fast and low temperature evaporation, so the nature color and flavor and smell of raw material is well remained.

3. Steam heating uniformly, high heat transfer efficiency and short heating time. The concentrate ratio can be regulated in large scale.

Main Model List:

MODEL	EVAPORATION CAPACITY	EVAPORATION TEMP.	POWER	VOLTAGE	WATER CONSUMPTION
GWM-500	500kg/h	45~85C	13kw	220/380V	5T/h
GWM-1000	1000kg/h	45~85C	15kw	220/380V	10T/h
GWM-1500	1500kg/h	45~85C	17kw	220/380V	15T/h
GWM-2000	2000kg/h	45~85C	21kw	220/380V	20T/h
GWM-3000	3000kg/h	45~85C	30kw	220/380V	30T/h

About Us

SHANGHAI GOINGWIND MACHINERY CO.,LTD. was founded in Shanghai, it has expanded in Jiangsu, Zhejiang and other places, with factory area of over 15000M2, working staff of more than 150 persons. We have more than 20 years of experience in the R&D and production of food equipment, our products are sold to more than 50 countries, such as United States, Hungary, South Korea, Pakistan, United Arab Emirates, Indonesia, Philippines, Australia, Myanmar, Thailand, Peru, Venezuela, Mongolia, Saudi Arabia, Malaysia, Canada, Trinidad and Tobago, Egypt, Tanzania, Georgia, Kenya, Congo, Angola, Nigeria, Chile, etc.

Our company specializes in the development and manufacturing of Dairy & Beverage Equipment, Fruit & Vegetable Processing Equipment, Essential Oils Distiller, and related Filling & Packaging Equipment. Products are widely used in food and other industries, including dairy products (milk, yogurt, cheese, ice cream, condensed milk, milk powder, etc.), fruit juices, plant-based milks, tomato paste, jams, dehydrated fruits & vegetables, powder & flour products, essential oils, etc.

We are is a professional food machinery manufacturer, we are committed to providing customized turnkey projects for the food industry to our customers. We warmly welcome your visit and sincerely look forward to cooperating with you!

Company Environment

Our Services

Pre-sale service:

1. Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.

2. Our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.

Sale service:

1. Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.

2. Our company has excellent after-sales service, strict training to ensure that the user needs.

3. During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.

After-sales service:

1. Our company strictly abide by the after-sales service commitment, boot debugging within 12 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)

2. Our company promises to provide life-long maintenance for equipment.

Our Certificates
