Description

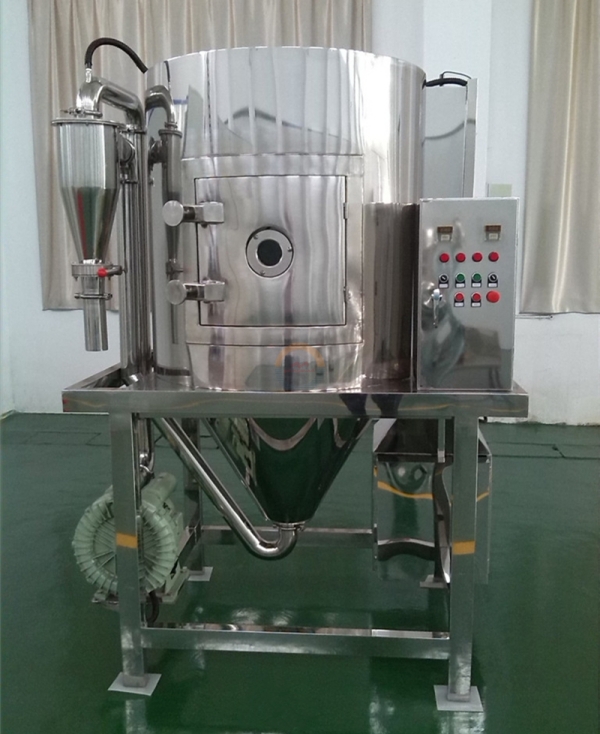

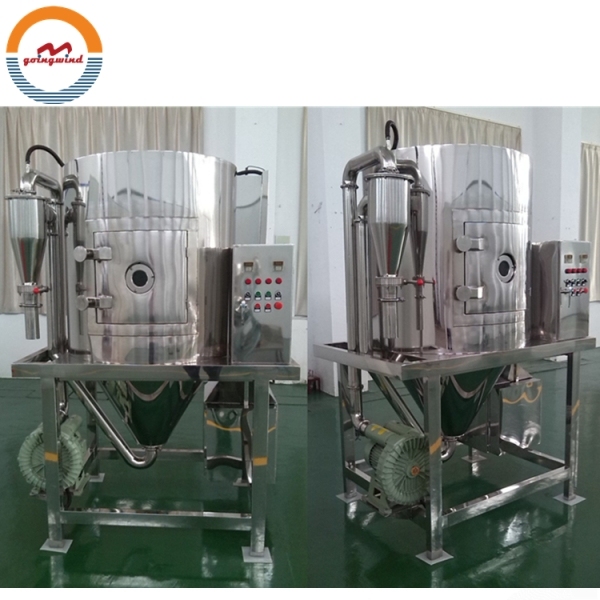

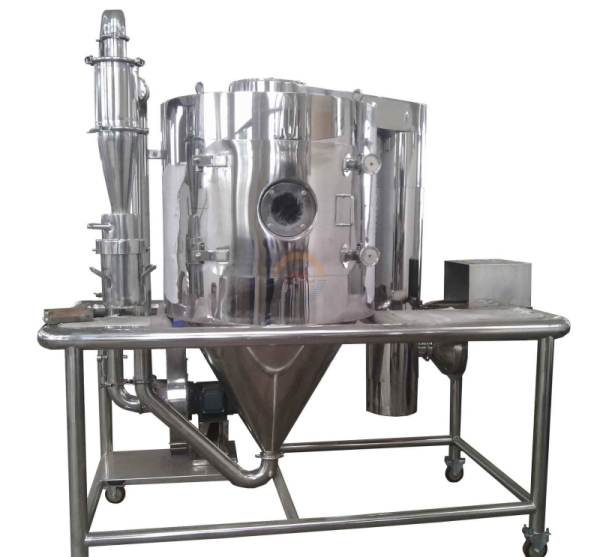

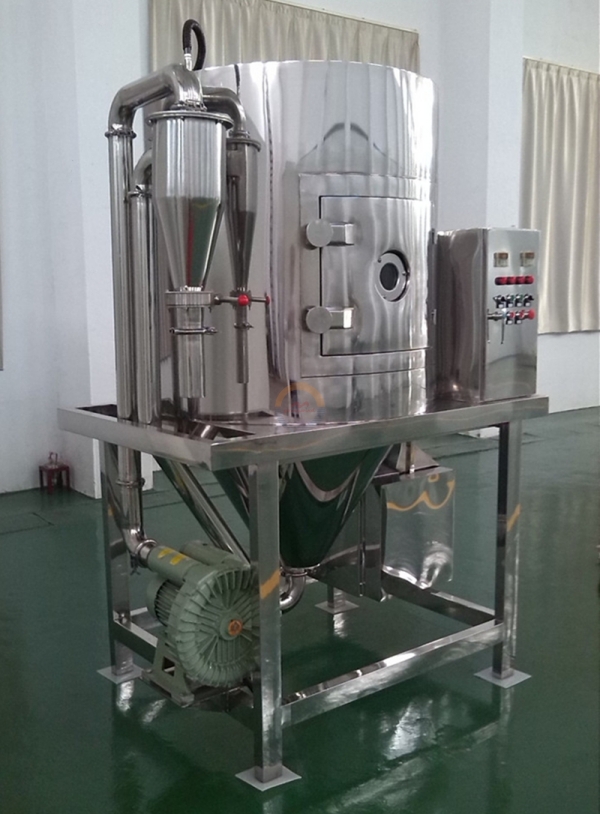

Mini Spray Dryer Lab Drying Machine Small Scale Centrifugal Vacuum Spray Drier Lpg-5 lpg 5 10 Laboratory Driers for Sale

Introduction:

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: solution, emulsion, suspension and pumpable paste states, for this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies. This spray dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, coffee, creamer, coconut, milk, gelatin, gum and acacia etc.

Working Principle:

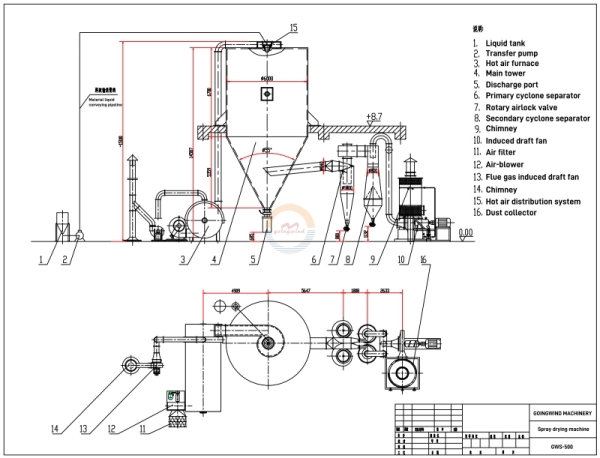

After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Model List:

MODEL	EVAPORATION CAPACITY	INLET TEMPERATURE	POWER	VOLTAGE	DIMENSIONS
GWS-5	5kg/h	150~300C	12.5kw	220/380V	160012001800mm
GWS-10	10kg/h	150~300C	31kw	220/380V	280015002200mm
GWS-25	25kg/h	150~300C	108kw	220/380V	400027004500mm
GWS-50	50kg/h	150~300C	145kw	220/380V	450028005500mm
GWS-100	100kg/h	150~300C	187kw	220/380V	520035006700mm
GWS-150	150kg/h	150~300C	99kw	220/380V	700055007200mm
GWS-200	200kg/h	150~300C	139kw	220/380V	850076008400mm
GWS-300	300kg/h	150~300C	160kw	220/380V	880076008500mm
GWS-500	500kg/h	150~300C	196kw	220/380V	1250080009800mm
GWS-600	600kg/h	150~300C	63kw	220/380V	170001120013000mm
GWS-1000	1000kg/h	150~300C	170kw	220/380V	220001270018500mm

About Us

SHANGHAI GOINGWIND MACHINERY CO.,LTD. was founded in Shanghai, it has expanded in Jiangsu, Zhejiang and other places, with factory area of over 15000M2, working staff of more than 150 persons. We have more than 20 years of experience in the R&D and production of food equipment, our products are sold to more than 50 countries, such as United States, Hungary, South Korea, Pakistan, United Arab Emirates, Indonesia, Philippines, Australia, Myanmar, Thailand, Peru, Venezuela, Mongolia, Saudi Arabia, Malaysia, Canada, Trinidad and Tobago, Egypt, Tanzania, Georgia, Kenya, Congo, Angola, Nigeria, Chile, etc.

Our company specializes in the development and manufacturing of Dairy & Beverage Equipment, Fruit & Vegetable Processing Equipment, Essential Oils Distiller, and related Filling & Packaging Equipment. Products are widely used in food and other industries, including dairy products (milk, yogurt, cheese, ice cream, condensed milk, milk powder, etc.), fruit juices, plant-based milks, tomato paste, jams, dehydrated fruits & vegetables, powder & flour products, essential oils, etc.

We are is a professional food machinery manufacturer, we are committed to providing customized turnkey projects for the food industry to our customers. We warmly welcome your visit and sincerely look forward to cooperating with you!

Company Environment

Our Services

Pre-sale service:

1. Our company provide free product technical solution, and give related technical lectures, help customers to meet the need of actual product selection and provide analysis on running economy.

2. Our company take charge to provide related technology consulting for free, and according to the actual product is free to provide equipment design.

Sale service:

1. Our company provide installation instructions for the product and free training for the customer to product production technology, can arrange technical personnel door-to-door free training according to the needs of customers.

2. Our company has excellent after-sales service, strict training to ensure that the user needs.

3. During installation, our company will provide technology consulting and equipment installation debugging field training, to ensure the normal use of the customer.

After-sales service:

1. Our company strictly abide by the after-sales service commitment, boot debugging within 12 months after the quality problem of the non-artificial factors caused by my company responsible for free maintenance (except for normal consumable spare parts)

2. Our company promises to provide life-long maintenance for equipment.
